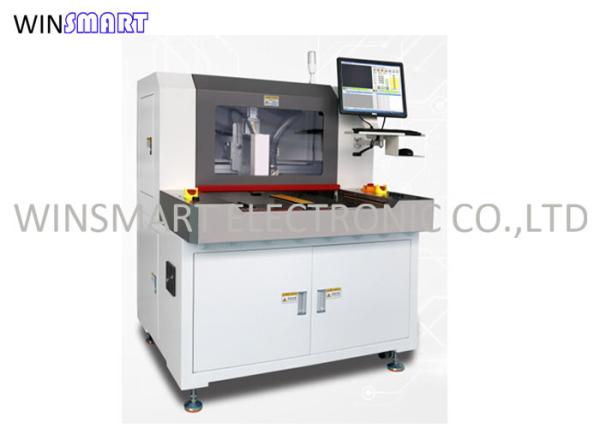

Stand Alone Ionizer PCB Depaneling Router Twin Tables and Top Cutting
PCB Router Features:
• Floor type double table cutting machine, with a speed of 100 mm / s and a positioning speed of 800 mm / s.
• High quality shaft system enables the system to accelerate and decelerate quickly, reduce synchronization time, improve productivity and maintain high accuracy.
• Use high quality hardware to ensure high rigidity and high performance.
• Automatic mark point positioning and correction system, real-time display of moving path and simulated route tracking, clear display at a glance, automatic alignment and correction function, high cutting accuracy
• All guide screws are covered to prevent dust and dirt from entering, to improve the service life and performance of the shaft.
• Avoid tin crack and parts damage caused by manual folding.
• Avoid the use of punching or folding, resulting in mechanical stress problems.
• Suitable for cutting arc and line of finished plate.
• It is suitable for cutting small pieces, such as mobile phone boards, PDA, PC interface card, etc.
PCB Router Specification:
| Model Number | SMTRX |
| Machine Size | 1200(L) x 1050(W) x 1400(H)mm |
| Voltage | 380V/50Hz, 2.5KW |
| Max PCB Size | 300x350mm (single table) |
| PCB Thickness | 0.4-5mm |
| Feeding Mode | Manual |
| PCB Positioning | Customized fixture |
| Programming | Vision teaching, inline programming |
| Cutting Spindle | Optional |
| Cooling Type | Self cooling |
| Dust Collection Mode | Bottom/Top collection |
| Cutting Speed | 1-100mm/s |
| Repeat Accuracy | ±0.01mm |
| Routing Bit | 0.8-3.0 Diameter, right rotation |
| Repeat Accuracy | ±0.02mm |
| Control System | Industrial PC |
| Spindle | Optional |
| Motion Control | 4 axis motion control board |
| Lead screw | C5 grinding screw lead |
| Camera | Germany imaging 40W greay camera |
| LCD | 17 inch |
